Chapter 1: Getting Started

1.1 Enterprise Server Installation

  1. Select the Akeni Enterprise Server installation file that matches your operating system and double-click on the file.
  2. If you are installing the commercial version of the software, or you have received an extended evaluation license key, please make sure that you have placed the license key file in the same directory as the installer.
  3. A welcome window will appear with information pertaining to the Akeni product, press the “Next” button to proceed.

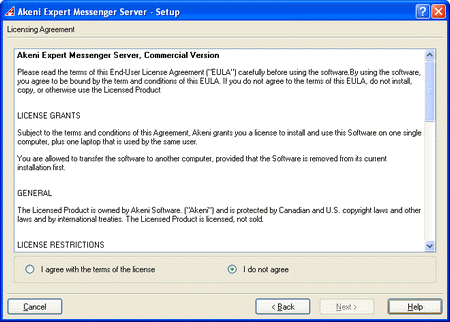

  4. The license agreement will now appear. If you accept the license agreement, select “I agree with the terms of the license” and press the “Next” button to continue. Otherwise, press the “Cancel” button to exit the installation.
  5. The installer information window will now appear. Enter the applicable information and press the “Next” button to continue.
  6. Enter the password for system administrator account "admin" and enter the password again to verify the password. You will have re-install the program if you lost your password (but your data will still be intact)
  7. Select the location where you wish Akeni to be installed and where the application data should be stored. Other options include:
  8. Press the “Next” button to proceed.

  9. You're now ready to install. The preview window will list the options that you have selected. If you wish to make changes, press the “Back” button. Otherwise, press the “Install” button to proceed.
  10. Akeni Enterprise Server has now been installed. To complete the process, press the “Finish” button.
  11. The AD (Active Directory) / LDAP Wizard will now be launched automatically (Please make sure that you do not click on the Enterprise Server desktop icon and launch the server before you have finished running this wizard.)

    For security reason, it is best to run the server with LDAP encryption set to LDAPS (LDAP over SSL) or StartSSL. If for some reason you can not get SSL to work then it is best to run the server on the same computer as your AD / LDAP server so that the password is not transmitted in the clear over the network.

    The hostname should be the FQDN (Fully Qualified Domain Name) of your AD/LDAP server. This must be the same as the FQDN on your LDAP/AD server's SSL certificate or the SSL server certificate verification will fail. If you are not using any encryption then it is OK to set it to the numeric IP address as well. If you are running the server on the same computer as your AD/LDAP without encryption then you can also set it to "localhost".

    If you are running on Microsoft Windows and you want to run the LDAP session over SSL then you must install the public key of the SSL certificate of your AD on the machine that is running the Enterprise Messaging server. The easiest way to do this is to point your Internet Explorer Web Browser to your AD server and then use it to import the certificate. For example, suppose your AD server is at ldap.yourcompany.com, then you should type "https://ldap.yourcompany.com:636" (note that it is "https" not "http") into the address bar of your browser and then tell the browser to accept the certificate offered by the server.

    In order to make sure that the host information you just entered is correct, you need to enter the DN (Distinguishing Name) of an user on your AD/LDAP that you know the password of.

    If you are using MS Active Directory, you can add the ADSI snap-in to the management console (MMC) to help you get the DN of the users. You can find the snap-in in the support folder of your Windows 2000/2003 server installer CD.

    The procedure is discussed in an article at http://www.microsoft.com/resources/documentation/Windows/2000/server/reskit/en-us/Default.asp?url=/resources/documentation/Windows/2000/server/reskit/en-us/distrib/dsbe_ext_jand.asp

    There is also more information at http://www.microsoft.com/technet/prodtechnol/windowsserver2003/library/ServerHelp/8c76ff67-9e9d-4fc7-bfac-ffedee8a04d4.mspx

    You may also want to download a free LDAP browser from http://www.ldapbrowser.com to help you figure out the structure of you LDAP / AD server. Note that you can install the browser on any Windows 2000/XP machine that can connect to your LDAP server via TCP/IP.

    When using Active Directory, the DN for someone whose user name is mark is probably CN=mark,CN=Users,DC=yourdomain,DC=com or CN=mark,OU=Office Users,DC=yourdomain,DC=com.

    Once you have entered the correct LDAP/AD host parameter you can now go to the next page, where you need to enter the following information:

    The third step in the LDAP wizard is to setup the mapping of the field from your LDAP / AD to the fields used by Enterprise Messenger. All the field names are optional and you can leave them blank.

    The last step in the LDAP Wizard is to create the accounts from the values that the system can find from your LDAP/AD using the parameters you have entered in step 2. You can delete users that you do not wish to have access to the messaging system by deleting their names from the list. You can use the control and shift key to select multiple entries. If you deleted a user by mistake then simply reload the page again.

    The user name used by the message system needs to be lower case alphanumeric plus the special characters [. + - _ - @], but can not include any spaces. This means that in order to bind to the LDAP / AD you need to change a mixed case user name to all lower case and replace the space with '+'. For example "Alice Smith" will have the user name "alice+smith".

    Please note that by default, any user who have a valid account on your LDAP / AD will have access to Enterprise Messenger because the account is created automatically when the user's account information have been authenticated against the LDAP/AD. If you do not want this behavior then you need to go to the Enterprise Messenger Server Console, choose (Files | Configuration) and disable the option Allow anyone with a valid LDAP account to sign-on.

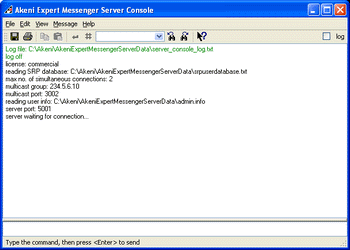

1.2 Launching Akeni Enterprise Server

  1. Depending on the options you selected during installation, you can start Akeni Enterprise Server in the following methods:

    • Double click on the “Akeni Enterprise Server” icon on your desktop.

    OR

    • Press the “Start” button on your system tray.
    • Select “Programs -> Akeni Enterprise Messenger Server -> Akeni Enterprise Server”.

    OR

    • Press the “Start” button on your system tray.
    • Select “Programs -> Akeni Enterprise Messenger Server -> Start Service”.
    • (You will see this option only if you installed the server as a Windows NT Service.)

1.3 Enterprise Client Installation

  1. Select the Akeni Enterprise Client installation file that matches your operating system and double-click on the file.
  2. If you are installing the commercial version of the software, or you have received an extended evaluation license key, please make sure that you have placed the license key file in the same directory as the installer.
  3. A welcome window will appear with information pertaining to the Akeni product, press the “Next” button to proceed.
  4. The license agreement will now appear. If you accept the license agreement, select “I agree with the terms of the license” and press the “Next” button to continue. Otherwise, press the “Cancel” button to exit the installation.
  5. The installer information window will now appear. Enter the applicable information and press the “Next” button to continue.
  6. Select the location where you wish Akeni to be installed and where the application data should be stored. Other options include:
  7. Press the “Next” button to proceed.

  8. You're now ready to install. The preview window will list the options that you have selected. If you wish to make changes, press the “Back” button. Otherwise, press the “Install” button to proceed.
  9. Akeni Enterprise Client has now been installed. To complete the process, press the “Finish” button.

1.4 Launching Akeni Enterprise Client

  1. Depending on the options you selected during installation, you can start Akeni Enterprise Client in the following methods:
  2. OR

  3. Enter the "admin" account password to login to server as the Akeni Enterprise Server administrator:
